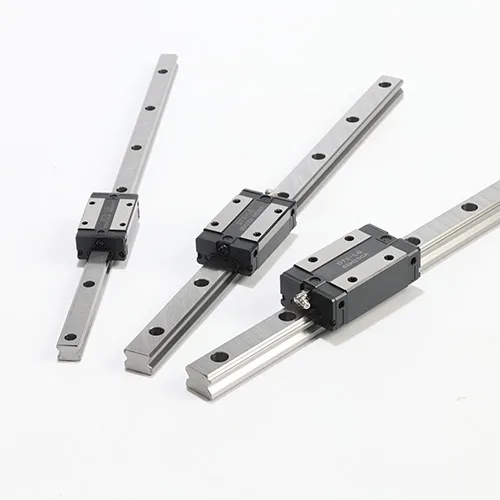

Low Profile Linear Guides Rail SER
SER 15/20/25/30/35
Fully Interchangeable with HIWIN EGR

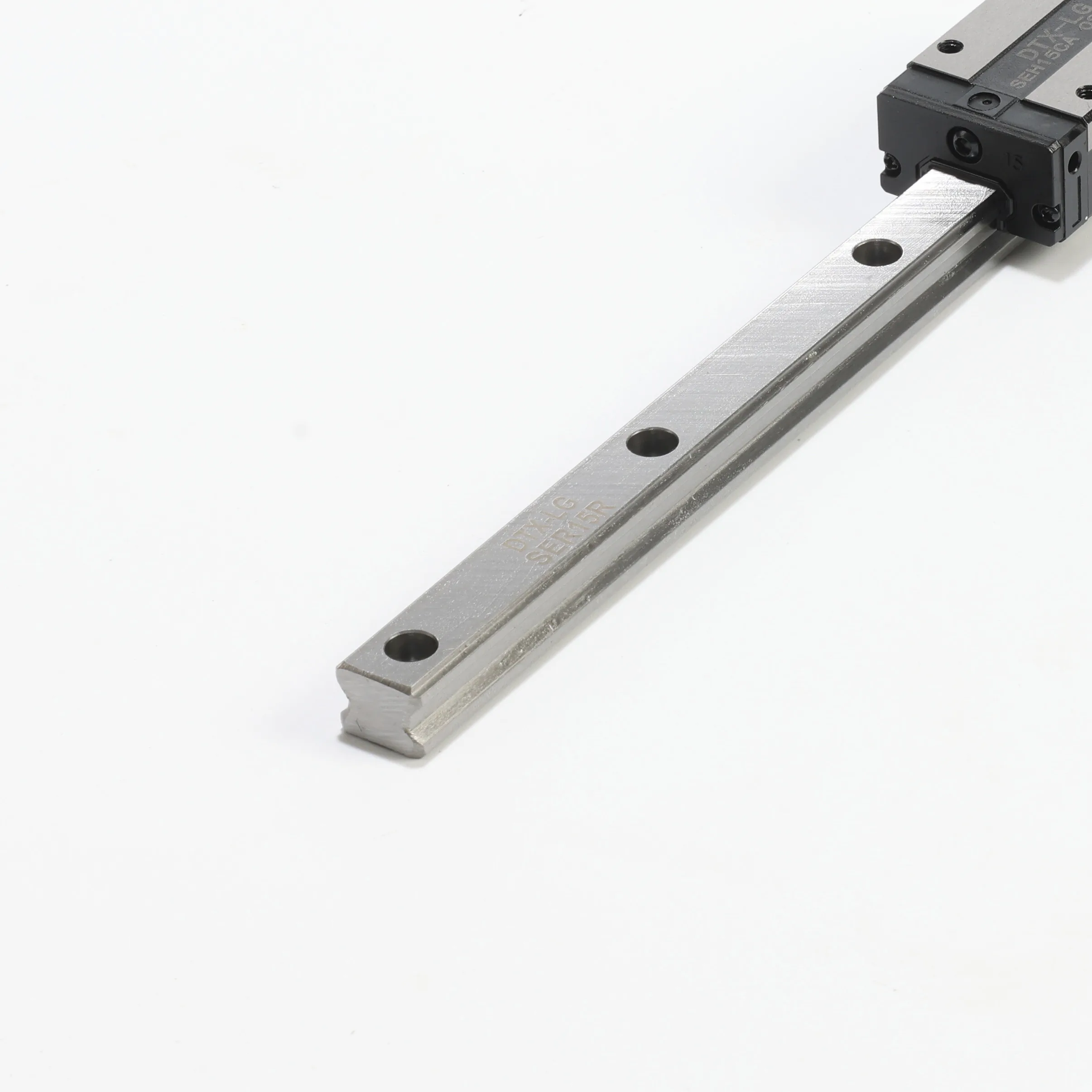

DTX-LG SER low profile linear rail system is a reliable Hiwin EGR replacement rail, designed to offer an efficient and cost-effective alternative to Hiwin EGR profile rails. Unlike the SGR linear rail, it features a low-profile linear guide rail that provides exceptional stability and high load-bearing capacity. This compact linear motion rail can undergo multiple surface treatments, including black chrome plating, electroplating chrome (white chrome), and blackening. Following treatment, the guides pass a rigorous 72-hour salt spray test, ensuring excellent rust and corrosion resistance, which significantly extends the lifespan of the product.
Additionally, the DTX-LG guide is crafted with precision using a 17-axis fully automated drilling machine, guaranteeing a consistent rail joint gap of less than 0.1mm. This ensures smooth motion and precise alignment, even in high-performance environments.
| Brand | Model | Dimensions of Rail (mm) | Weight kg/m | Interchange Level |
| THK | SRG15 | 20/17.5/9.5/8.5/6/60/20 | 2.21 | 100% |
| HIWIN | HGH 15 | 20/17.5/9.5/8.5/6/60/20 | 2.21 | 100% |
| DTX-LG | SRR 15 | 20/17.5/9.5/8.5/6/60/20 | 2.21 | 100% |
Why DTX-LG linear guide rail?
- Flexible MOQ
- Competited Price
- High Customization
- Professional Support & Service
- Quality Assurance
- Full Interchangeability
- Good running smoothness
- Significant Cost Advantage
01. CNC Precision Drilling Machine for linear guide rails
DTX-LG Adopting a Mirror-Symmetric Drilling System, the dual-spindle real-time synchronization error ≤0.003mm ensures balanced thermal dissipation across the guideway cross-section.
This eliminates arc-shaped deformation caused by unilateral processing, guaranteeing full-length straightness stability ≤0.005mm/m (exceeding ISO Class C precision standards).
02. Smart Batch Sampling: Precision Assured, Costs Controlled
Every DTX-LG lot undergoes rigorous sampling, ensuring ±0.005mm/m straightness & ISO Class C+ precision. Zero-defect guarantee.
03. Bulk Production Excellence for Distributor Inventory Assurance
Mass-produced with 100% batch sampling, ensuring 24hr-ready stocks for distributors. Guaranteed ±0.005mm precision at volume pricing.
04. High-rigidity material
DTX-LG linear guides rail feature higher C/Si/Cr content than leading Taiwanese and Japanese brands, improving rigidity while maintaining full interchangeability.
Questions? You’re covered
As a manufacturer of linear guide rails, DTX-LG offers professional service from R&D and production to final adjustment. We look forward to exploring new challenges with you.
01. Are mounting holes and hole pitch the same as Hiwin EGR rails?
Yes, DTX-LG’s SER rails match the mounting hole patterns and pitch of Hiwin EGR rails, enabling direct replacement without redesign.
02.Do you offer cut-to-length or custom rail services for SER guides?
Yes. We provide standard and custom-length rails according to your specific application needs, including drilled mounting holes and end caps.
03. Are SER rails made of hardened steel?
Yes, all SER precision linear guideways are manufactured from high-grade, induction-hardened bearing steel and are precision-ground for smooth motion and durability.
04. Can I use existing Hiwin EGH blocks with your SER rails?
Absolutely. Our SER low profile linear guide rail are fully compatible with Hiwin’s EGH blocks or any third-party block matching the hiwin eg series linear guideway.
05. What applications are suitable for SER guide rails?
SER guide rails are ideal for compact CNC machinery, electronics assembly, semiconductor equipment, and precision automation systems.
