6 Mistakes When Buying Hiwin Alternative Linear Guides
With the rising demand for linear guides, many buyers look for cost-effective alternatives to Hiwin. A good replacement can save 20–40% of the cost without sacrificing performance—but only if you choose correctly.
Unfortunately, many users fall into the same traps. Here are the 6 most common mistakes and how to avoid them.
The good news is: you are not alone, and viable solutions for your linear motion needs do exist. The key to successfully replacing the HIWIN series with a budget-friendly brand lies in understanding the true meaning of “interchangeability” and avoiding common pitfalls. This guide, based on practical experience, will provide you with a clear, in-depth roadmap.
Are there any brand could replaced HIWIN HG/EG with an alternative brand?
Yes, but careful discernment is required.
As an industry leader, HIWIN’s EGR Series (which belongs to the miniature ball linear guide family) is widely used due to its compact size and high rigidity. Several major brands on the market offer competing product lines that strive for interchangeability in mounting dimensions. This means:
- Same Hole Positions: The spacing and size of the mounting screw holes are consistent with the HG/SG Series.
- Similar Profile: The width and height of the rail are nearly identical, allowing for smooth installation onto existing machine bases.
- Matched Block Interface: The flange size and screw hole positions of the block are compatible with the HG/SG Series, enabling direct replacement of the old block.

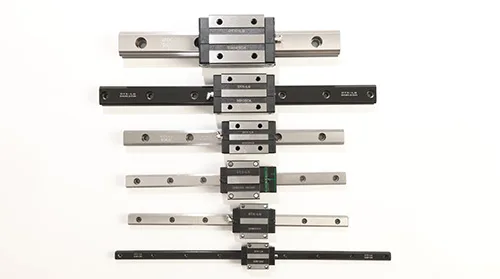

These design goals make “direct replacement” physically possible. Based on market feedback and project experience, the following brands perform well in terms of cost-effectiveness and interchangeability:
| Category | Brand | Advantages | Precautions |
Original manufacturer | Brand consistency with a reliable supply chain. | Still high-end, with limited price drops. | |
Top-tier competitor | Top-tier performance with unquestionable reliability. | Still pricey and may require special-channel quotes. | |
High quality | A reputable Japanese brand with overlapping dimensions/specifications. | Double-check the dimensions for each model. | |
Cost-effective | DTX-LG…. | Significantly reduced cost with strong market validation. | Pay close attention to preload, accuracy, and coating. |
The safest approach is to obtain the specific model of the HIWIN HG/EG series you are currently using (e.g., HG15 CA), and then directly request a “cross-reference table” or “interchangeable model list” from the linear guide suppliers or distributors of these alternative brands.
DTX-LG is one of the main sources for cost reduction. As a manufacturer with 35 years of industry experience and 5 years of linear guide manufacturing experience, its product catalog clearly marks the models that are interchangeable with the HIWIN EGR Series. For your convenience in checking compatibility, DTX-LG can provide 3D models and 2D parameters of the linear guides.
Anything should watch out for when using non-HIWIN linear rails and block?
Matching the physical dimensions is only the first step. There are 6 Mistakes When Buying Hiwin Alternative Linear Guides, especially the following points for CNC machine tool applications:
1.Choosing the wrong preload and rigidity
This is the biggest risk factor. HIWIN linear bearing blocks have different preload classes (e.g., C0 Light Preload, C1 Medium Preload).
CNC linear guide rails Application Recommendation:
For CNC machine tools, Medium or Heavy Preload is the safer choice to ensure sufficient rigidity to withstand cutting forces. Standard replacement parts are often Light Preload (or C0, No Preload), which can lead to insufficient machine rigidity, resulting in shaking or chatter during machining, thus affecting surface finish quality.
It is crucial to clearly specify the required preload class when ordering (e.g., P3 Medium Preload).
2.Ignoring the Stack Height Tolerance(linear rail and block)
Not considering mounting surface errors, rail machining tolerances, and total combined deviation.
The tolerance of the Stack Height (the total height from the bottom surface of the rail to the mounting surface of the block) is crucial for the parallelism of a multi-guide rail system.
Key Difference: The stack height tolerance for standard guide rails can be as high as 0.03mm (0.004 inch), which is absolutely unacceptable for high-precision CNC machine tools.
Action Required: When ordering, you must specify a high-precision tolerance grade (e.g., 0.02 ) to ensure consistent height across all rail and block combinations, preventing mounting stress or positioning errors after installation.
3.Selecting an incorrect accuracy grade
CUsing a lower accuracy level even though the application requires high positioning or repeatability.

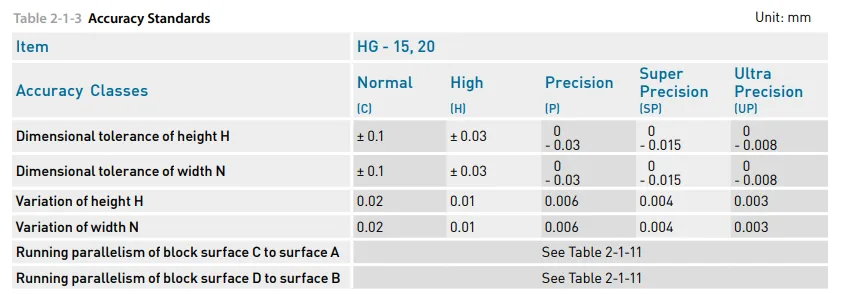

Linear guide rails typically have 12 or more Accuracy Standards (such as Normal Grade C, High Grade H, Precision Grade P, etc.). Although they all claim to be “Normal Grade” or “High Grade,” the precision standards can vary subtly between different brands.
For most CNC machine retrofits, it is recommended to select at least the High Grade (H) or higher to ensure smooth operation and accurate positioning.

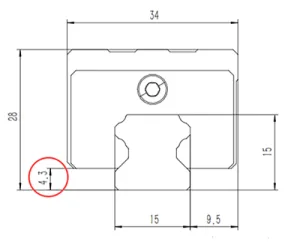

4.Overlooking bottom of block to bottom of rail dimension
Leading to poor installation stability, uneven stress, and reduced lifespan.
This point is often overlooked, but it is extremely important.

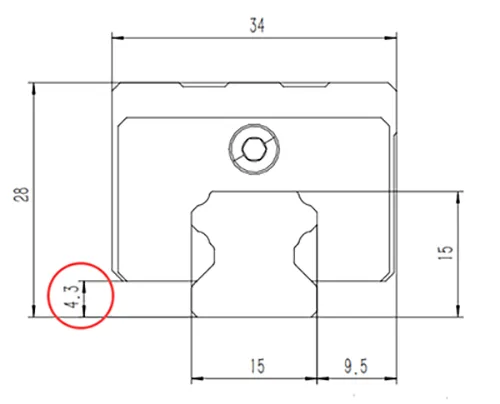

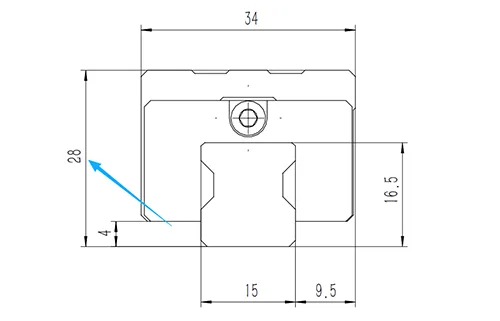

- Key Difference: Although the flange and hole dimensions may be the same, the specific dimension from the bottom of the block to the bottom of the rail (often the mounting datum point) can have minor variations between different manufacturers. If this dimension is inconsistent, it may affect the installation or alignment of your existing accessories (such as bellows covers or clamps).
- Action Required: Before purchasing, you must request the detailed engineering drawings of the alternative product and compare them against the drawings of the original HIWIN rail and block.
5.Failing to consider coating and corrosion-resistance requirements
Causing rust or premature failure in humid environments, coolant exposure, dust, or outdoor use.
a CNC workshop environment, the coating (surface treatment) is extremely important.
- HIWIN Black Chrome: Provides excellent rust resistance, wear resistance, and scratch resistance, and it is more conducive to the formation of an oil film for better lubrication.
- Low-Cost Alternatives: May use standard galvanizing or ordinary plating with weaker anti-corrosion capabilities.
Do not sacrifice the surface treatment to save a small amount of cost. For CNC applications, we strongly recommend choosing alternatives that feature high-quality black chrome or an equivalent performance coating (such as phosphating) to extend the system’s service life and stability.
6.Ignoring joint alignment and rail-to-rail gap control
Resulting in rough motion, higher noise, and reduced positioning accuracy.

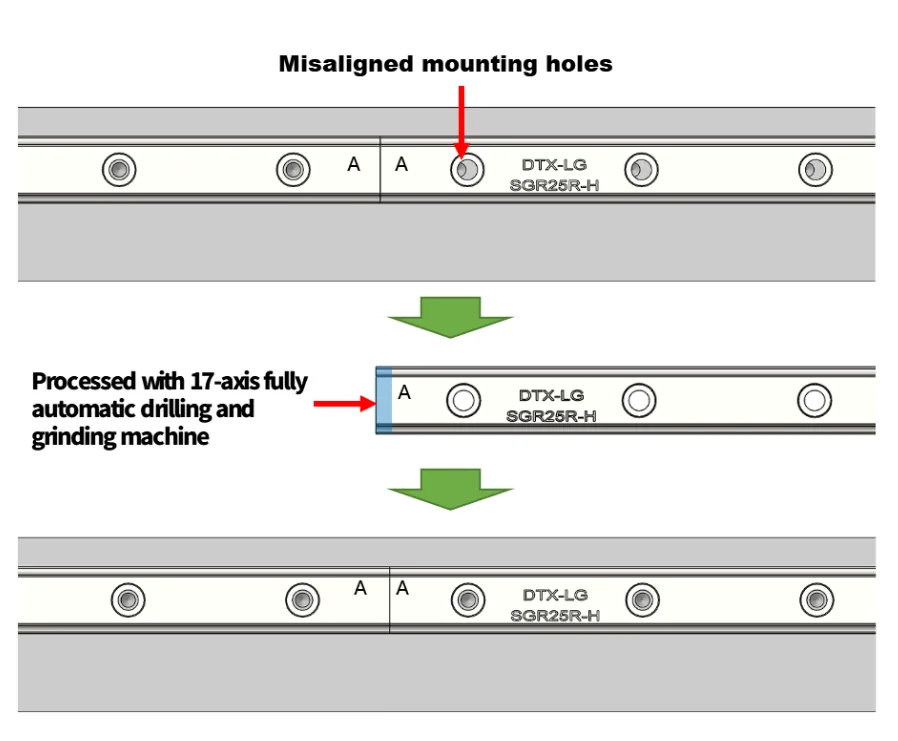

Long guide rails are usually supplied in sections. The joint kits and interface designs for connecting the rails vary between different brands. Improper handling can cause noticeable jumping or displacement at the joints, affecting machining accuracy.
Action Required: During installation, please strictly follow the alternative brand’s instruction manual for splicing and alignment.
Conduct Sample Testing: If the project allows, first purchase a set (one rail and one block) for testing. Manually measure the dimensions, check the craftsmanship, and perform no-load and light-load testing on the machine.
Choose Reputable Alternative Brands: Prioritize well-established and reputable linear guide rail manufacturers like DTX-LG and PMI, rather than products from completely unknown traders. They offer more comprehensive quality control and after-sales support.
Communicate with a Reliable Supplier: Find a professional and honest supplier, clearly inform them of your application (small CNC), the original brand (e.g., HIWIN EGR25, HIWIN HG25CC), and your requirements for preload (medium to heavy) and stack height tolerance (high precision). Also, request that they provide 3D models.
Through careful selection and testing, you can significantly reduce the project’s spare parts costs without sacrificing machine performance, achieving a win-win outcome for both the client and the project.
