SMNR 5/7/9/12/15
Fully Interchangeable hiwin mgn series
- Rail length: up to 6 m
- Accuracy grades: C, H, P
- Sizes: 5,7,9,12,15
- Rail mounting types: top mounting / bottom mounting
- Material options: stainless steel, black chrome plated, hard chrome plated
- Rail dust protection: steel belt, metal dustproof end cover
Why DTX-LG mini linear rail?
- Quantità minima d'ordine flessibile
- Prezzi competitivi
- Elevata personalizzazione
- Supporto e servizio professionale
- Garanzia di qualità
- Piena intercambiabilità
- Good running smoothness
- Significant Cost Advantage
01. CNC Precision Drilling Machine for linear guide rails
DTX-LG Adopting a Mirror-Symmetric Drilling System, the dual-spindle real-time synchronization error ≤0.003mm ensures balanced thermal dissipation across the guideway cross-section.
This eliminates arc-shaped deformation caused by unilateral processing, guaranteeing full-length straightness stability ≤0.005mm/m (exceeding ISO Class C precision standards).
02. Smart Batch Sampling: Precision Assured, Costs Controlled
Every DTX-LG lot undergoes rigorous sampling, ensuring ±0.005mm/m straightness & ISO Class C+ precision. Zero-defect guarantee.
03. Bulk Production Excellence for Distributor Inventory Assurance
Mass-produced with 100% batch sampling, ensuring 24hr-ready stocks for distributors. Guaranteed ±0.005mm precision at volume pricing.
04. High-rigidity material
DTX-LG linear guides rail feature higher C/Si/Cr content than leading Taiwanese and Japanese brands, improving rigidity while maintaining full interchangeability.

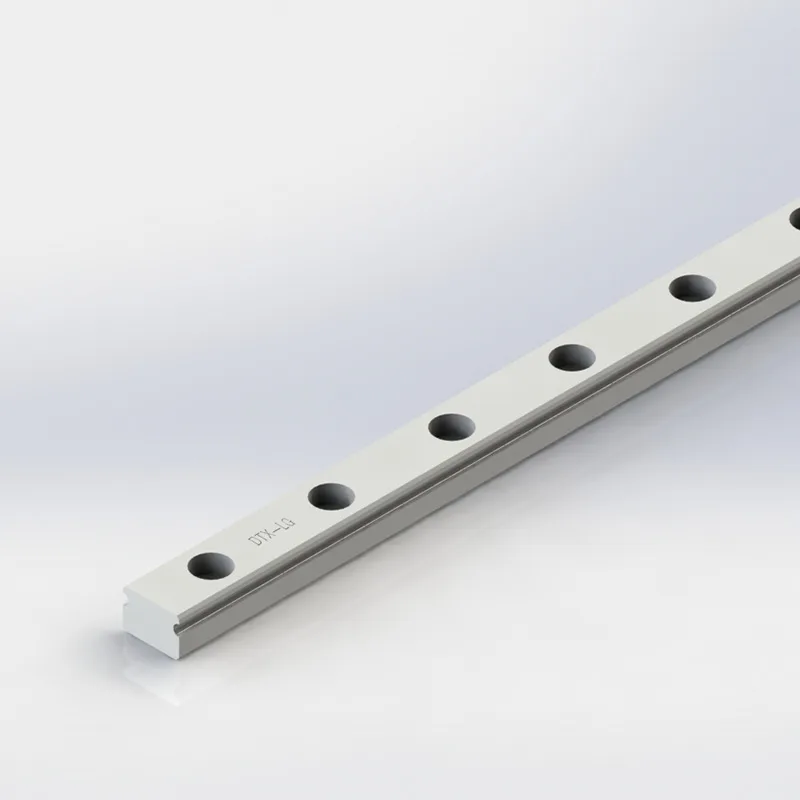

DTX-LG produces miniature linear guides that are interchangeable with Hiwin MGN rails, IKO miniature linear guide, and most other brands. Our mini linear rail systems reach P-class precision, ensuring smooth and accurate motion for demanding applications.

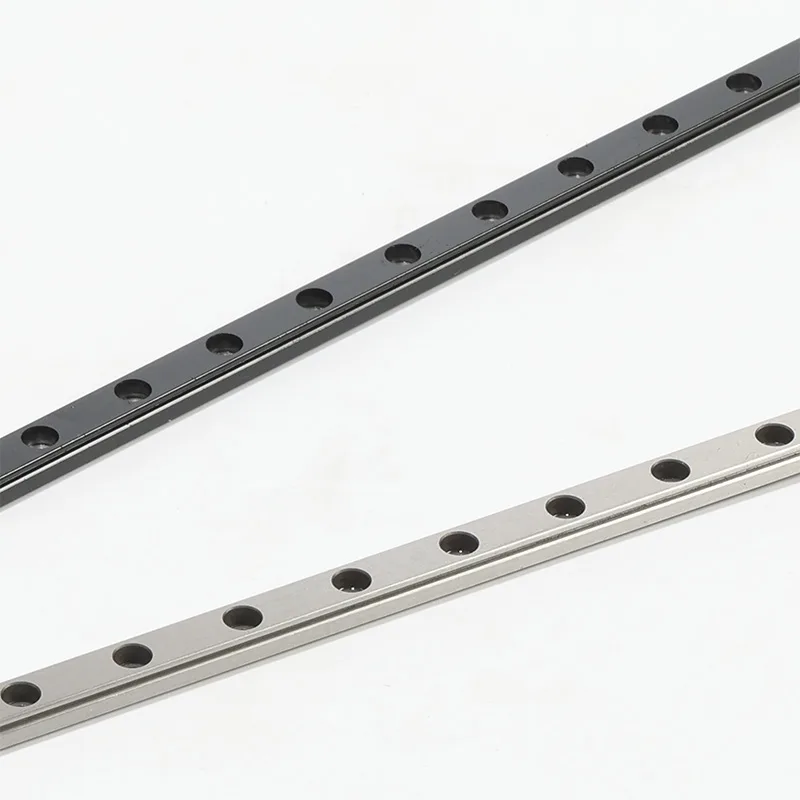

Rails are available in standard carbon steel or stainless steel. While stainless steel offers better corrosion resistance, regular lubrication and maintenance are still necessary. For harsh environments, DTX-LG provides hard chrome plating and chemical black chrome as low-cost anti-rust solutions.
We supply linear guideway rails up to 6 meters long. Rails under 1 meter achieve 9-micron running accuracy. Distributors benefit from stocked full-length rails, which can be custom-cut to reduce lead time and speed up delivery.
As a miniature linear rail manufacturer, DTX-LG offers full customization: special lengths, drilling, and machining. Our linear guide components are widely used in 3D printers, medical devices, lab automation, and small CNC machines, where compact design and high precision matter most.
Choose DTX-LG for reliable, cost-effective mini linear guide, linear guideway MGN9, and low profile mini rail linear guide solutions designed for global distributors and OEMs.
Domande? Siamo a Vostra Disposizione
As a linear guide rails manufacturer, DTX-LG offers professional service from R&D and production to final adjustment. We look forward to exploring new challenges with you.
01. What is the minimum order quantity (MOQ)?
DTX-LG linear motion components MOQ is flexible to support distributors. For common sizes such as MGN15 linear rail, MGN9 linear rail, and Hiwin MGN linear rails compatible models, we accept small trial orders to help you start new markets with low risk.
02. Do you offer price breaks for bulk orders?
Yes. We provide competitive pricing tiers for large-volume orders. The more you purchase, the lower the unit cost — perfect for stocking popular sizes like Hiwin MGN 12 CC and MGN12H mini linear rail guide.
03. Can you provide stock for cutting and quick delivery?
Yes. We keep partial inventory of full-length mini linear rails so distributors can cut rails locally and deliver to end-users faster. This helps reduce lead time and keep your projects on schedule.
04. Do you provide technical documents and interchange data?
Yes. We offer detailed installation drawings, product datasheets, and interchange guides so you can easily replace Hiwin MGN linear rails or other brands with our products.
05. What customization options are available?
DTX-LG supports:
- Customized rail lengths (up to 6 meters)
- Drilling patterns according to your drawings
- Surface treatments: hard chrome, chemical black chrome
- Stainless steel linear guide option for corrosion resistance
06. Do you offer exclusive distribution rights?
Yes, for qualified partners we can discuss exclusive distribution agreements to protect your region and give you an edge over competitors.
07. What is your lead time for production and delivery?
- Standard mini rail miniature linear guide ship in 3–7 days if in stock.
- Customized orders take 2–4 weeks depending on length, drilling, and surface treatments.
