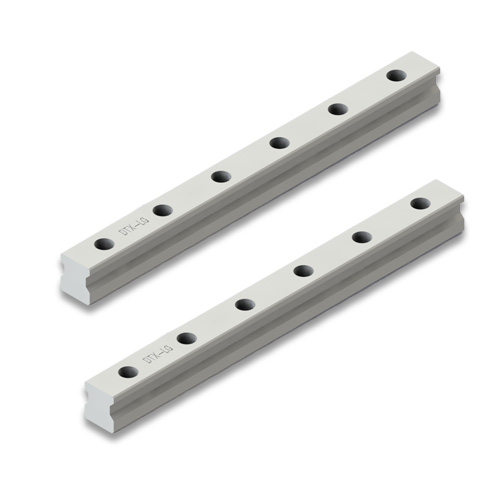

DTX-LG Heavy Duty Linear Slide Rails SRR
SRR 15/20/25/30/35/45/55/65
Fully Interchangeable THK SRG / HIWIN RG
The SRR series from DTX-LG features standalone linear guide rails for roller-type blocks, manufactured using three-sided precision grinding technology to ensure outstanding straightness, parallelism, and surface quality. Sizes are available from SRR15 to SRR65, and all rails support H / P / SP / UP precision classes, making them suitable for both standard and ultra-precision linear motion applications. Designed for compatibility with square or flange-type roller blocks, SRR rails deliver stable motion accuracy, long service life, and seamless interchangeability with global brands such as THK and HIWIN.
| Brand | Model | Dimensions of Rail (mm) | Weight kg/m | Interchange Level |
| THK | SRG15 | 20/17.5/9.5/8.5/6/60/20 | 2.21 | 100% |
| HIWIN | HGH 15 | 20/17.5/9.5/8.5/6/60/20 | 2.21 | 100% |
| DTX-LG | SRR 15 | 20/17.5/9.5/8.5/6/60/20 | 2.21 | 100% |
Why DTX-LG heavy load linear slide rails?
- Flexible MOQ
- Competited Price
- High Customization
- Professional Support & Service
- Quality Assurance
- Full Interchangeability
- Good running smoothness
- Significant Cost Advantage

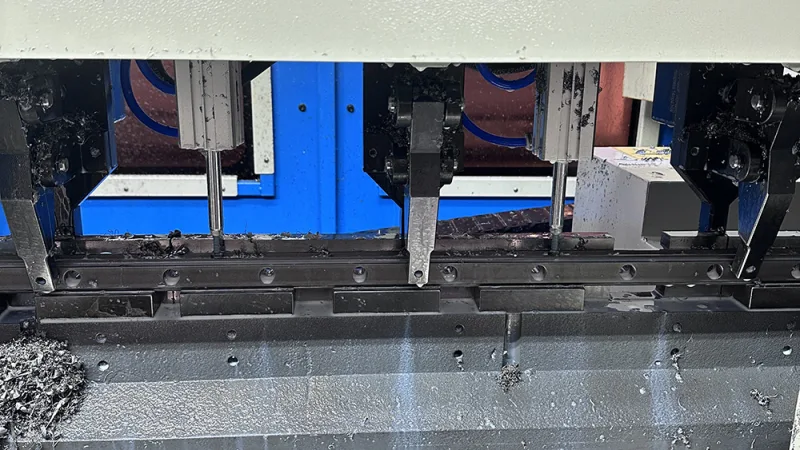

01. CNC Precision Drilling Machine for linear guide rails
DTX-LG Adopting a Mirror-Symmetric Drilling System, the dual-spindle real-time synchronization error ≤0.003mm ensures balanced thermal dissipation across the guideway cross-section.
This eliminates arc-shaped deformation caused by unilateral processing, guaranteeing full-length straightness stability ≤0.005mm/m (exceeding ISO Class C precision standards).

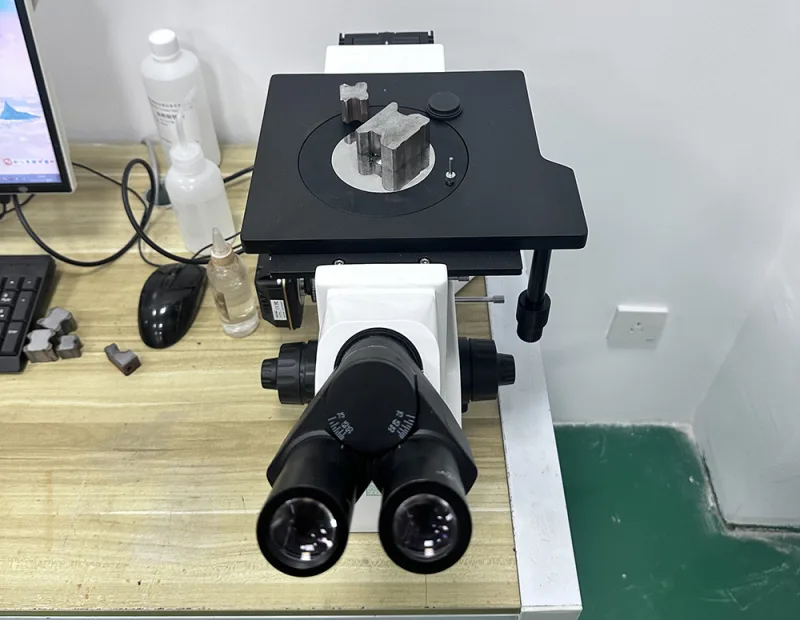

02. Smart Batch Sampling: Precision Assured, Costs Controlled
Every DTX-LG lot undergoes rigorous sampling, ensuring ±0.005mm/m straightness & ISO Class C+ precision. Zero-defect guarantee.

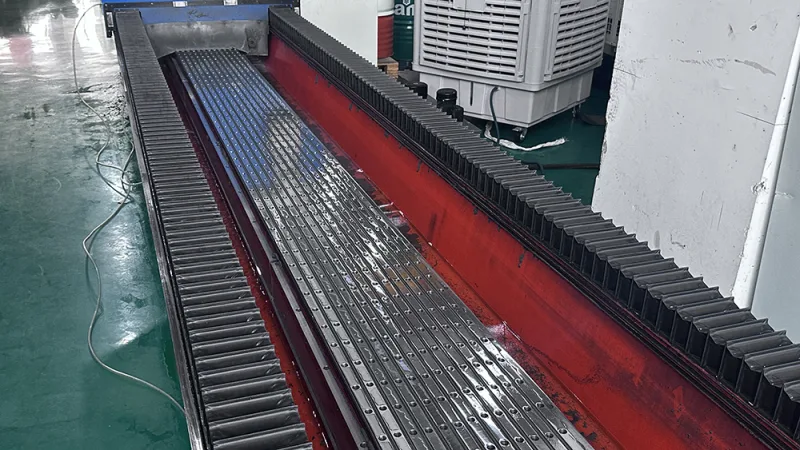

03. Bulk Production Excellence for Distributor Inventory Assurance
Mass-produced with 100% batch sampling, ensuring 24hr-ready stocks for distributors. Guaranteed ±0.005mm precision at volume pricing.
04. High-rigidity material

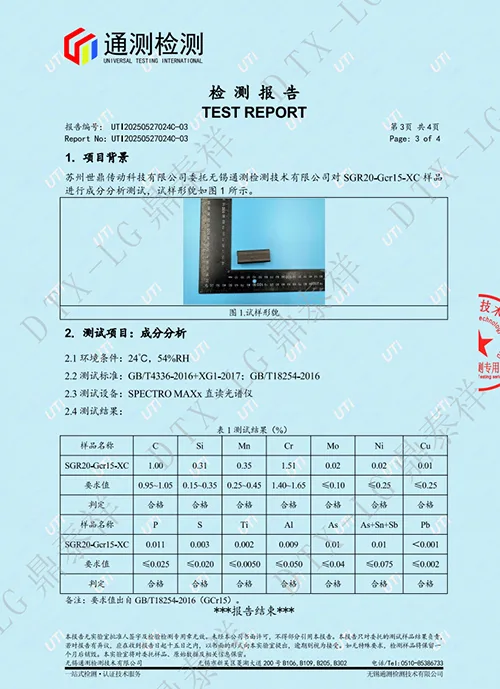

DTX-LG linear guides rail feature higher C/Si/Cr content than leading Taiwanese and Japanese brands, improving rigidity while maintaining full interchangeability.
Questions? You’re covered
As a manufacturer of linear guide rails, DTX-LG offers professional service from R&D and production to final adjustment. We look forward to exploring new challenges with you.
01. What is the DTX-LG SRR linear guide rail?
The SRR is a precision linear guide rail manufactured by DTX-LG, designed to be fully compatible with Hiwin’s RGR low-profile guide rails.
02. Is the SRR rail interchangeable with Hiwin RGR rails?
Yes, SRR rails are dimensionally equivalent and can directly replace Hiwin RGR rails in automation, CNC, and compact machinery applications.
03. What sizes are available in the SRR series?
We offer SRR rails in sizes SRR15, SRR20, and SRR25, which correspond to Hiwin’s RGR15, RGR20, and RGR25 models.
04. Can I use SRR rails with Hiwin RGL blocks?
Absolutely. Our SRR rails are fully compatible with Hiwin RGL and DTX-LG SRL low-profile square blocks.
05. Are DTX-LG SRR rails suitable for high-speed linear motion?
Yes, SRR rails are manufactured with high-precision grinding and hardened surfaces, enabling smooth, accurate motion even at high speeds.
