DTX-LG Wide Linear Guide
SMW Series
Wide Linear Guide
DTX-LG wide precision linear guide offers superior stability and load distribution in a compact form. Ideal for micro CNCs, semiconductor devices, and compact automation systems, it features a wide base and low-profile carriage for smooth, most widely used models among them are the 7mm-wide linear rails.. Made from high-grade bearing or stainless steel, with tight tolerances and customizable lengths, our rails are compatible with major brands for easy replacement. A perfect choice when both space-saving and performance are essential.This linear guide is fully interchangeable withthk miniature linear guide THK SRG, linear guideway HIWIN EGH series and iko miniature linear guide IKO LWL, offering similar precision and performance at a more competitive cost.
wide linear guide rail
SMWR 5/7/9/12/15
wide linear guide rail block
SMW 5/7/9/12/15
wide linear guide rail & carriage

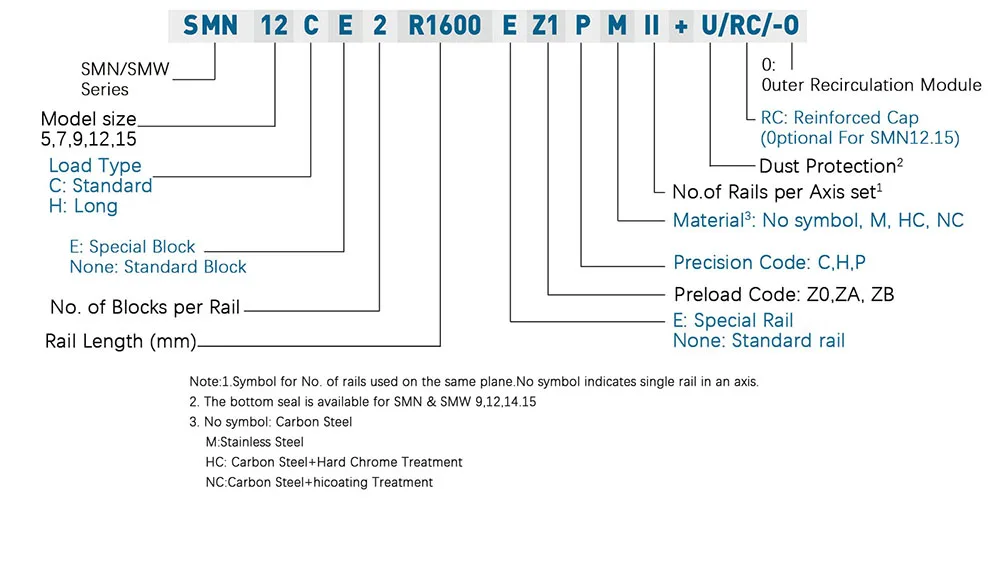

Order Of wide linear rail guide
Free Samples Available！
We’re glad to provide you with free samples. You can choose to pay for shipping either upon receipt or in advance. Just let us know what you need, and we’ll ensure your satisfaction before you make a purchase.
Why Choose DTX-LG as Your Linear Guide Manufacturer?
DTX-LG develops dustproof accessories with enhanced high dustproof function for working environments that are more stringent than general environments. If you need the following high dustproof accessories, please add the code after the product model.
The accuracy of the SG series linear guides is divided into five levels: ordinary, high, precision, ultra-precision and ultra-high precision. Customers can choose the accuracy according to the accuracy requirements of the equipment.
DTX-LG linear guides feature excellent dimensional accuracy and standardized design, ensuring high interchangeability. They can directly replace major brands like THK and HIWIN, offering a cost-effective alternative.
Made from high-grade bearing steel or stainless steel, with precision grinding and heat treatment for durability and stability.
DTX-LG provides two types of linear guides: flange type and square type. The square type linear guide is divided into H type and L type. The L type is a low-assembly linear guide of the H type, and its combined height is the same as that of the flange type linear guide.
Certificates and Patents
DTX-LG linear guide come with a host of certifications—functional and design patents, ISO 9001, ISO 13485, ISO 45001, ISO 14001, virus & bacterial filtration tests, and more. We continually add credentials to ensure quality.
Questions? You’re covered
As a manufacturer of linear guide rails, DTX-LG offers professional service from R&D and production to final adjustment. We look forward to exploring new challenges with you.
01. What is a wide linear guide and how does it differ from standard linear guides?
A wide linear guide features a broader rail profile, which provides greater stability and load-bearing capacity compared to standard-sized rails.
02. What applications are wide linear guides suitable for?
DTX-LG linear rails and slides are ideal for high-precision equipment such as CNC machines, milling machines, industrial automation, and robotic arms.
03. Can your wide linear guides replace Hiwin or THK wide-type models?
Yes, our wide linear guides are fully interchangeable with major brands like Hiwin and THK, offering similar precision and performance at more competitive prices.
04. What materials are used in your wide linear guides?
We use high-quality bearing steel with low nickel content and enhanced chromium composition to ensure rigidity and durability.
05. Where are your linear rails manufactured?
Yes, all our linear guides are pre-lubricated and ready for installation. Lubrication ports are also included for easy maintenance.
Want a quick quote?
Receive requests and quotations
*No model? Just share dimensions or usage—we’ll recommend one.
*Get a quote based on your specs: model, size, quantity, etc.
Confirm samples
* All samples are securely packed to ensure they arrive in good condition.
Production on demand
*Our production follows ISO standards to ensure precision and consistency.
Delivery and suppoet
*Multiple shipping options are available: sea, air, or express (DHL/UPS/FedEx).
